New Vibration Pen DV 110 and DV 130
Description

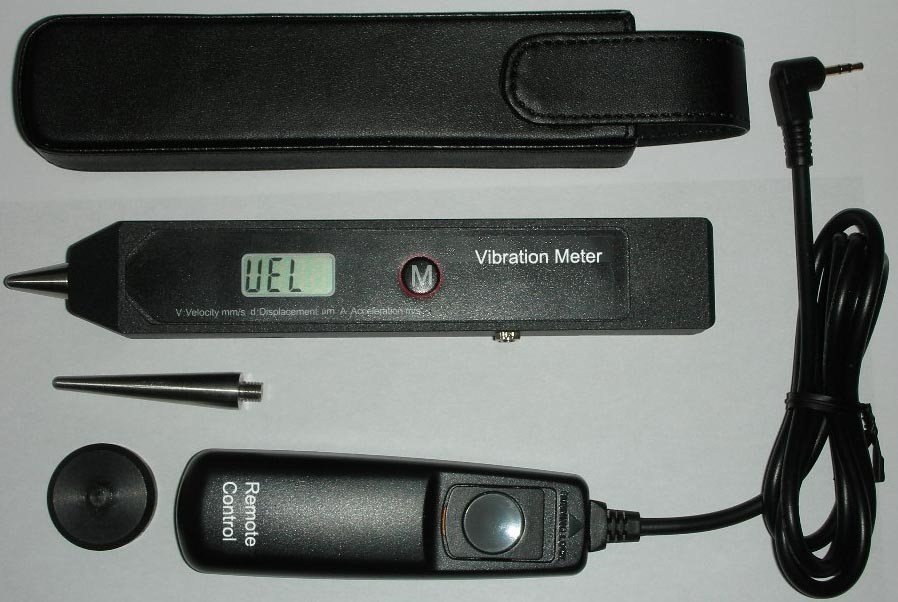

New Vibration Pen DV 110 and DV 130
Extremely reliable and potable, low cost instrument specifically designed for on-site maintenance in plant or workshop.
DV 110 measures vibration level by Velocity RMS.
DV 130 measures vibration level by Velocity RMS, displacement Peak-Peak & Acceleration Peak.
It features with one-button operation, holding function and automatic power off.
It is with remote switch and magnet base to avoid handheld problem, get reliable and consistent data.
Technical specs:
| Model | DV 110 |
DV 130 |
||
| Parameter | Velocity RMS (mm/s)
0.2 – 199.9 mm/s |
Acceleration, Velocity, Displacement |
||
| Testing range | Velocity:
0.1mm/s ~ 199.9mm/s |
Acceleration:0.2~199.9m/S2 (peak)
Velocity: 0.1mm/s -199.9 mm/s(RMS) Displacement: 0.001mm -1.999 mm (peak-peak) |
||
| Frequency range | Velocity:10Hz ~ 1kHz | Acceleration: 10Hz ~ 1kHz
Velocity: 10Hz ~ 1kHz Displacement: 10Hz ~ 1000Hz |
||
| Accuracy | ±5%±2 | ±5%±2 | ||
| Display | 4 digits LCD refresh interval about 0.5 second | 4 digits LCD | ||
| Power supply | ½ AA, 3.6V | ½ AA, 3.6V | ||
| Battery capacity | >100 hours working continuously | >100 hours working continuously | ||
| Operating
Temperature |
0℃ ~ 50℃ | 0℃ ~ 50℃ | ||
| Environment
humidity |
<85% | <85% | ||
| Dimension | 160mm×25mm × 17mm | 160mm × 25mm × 17mm | ||
| Dimension
Weight |
Aluminum casing
120g (with battery) |
Aluminum casing
120g (with battery) |
