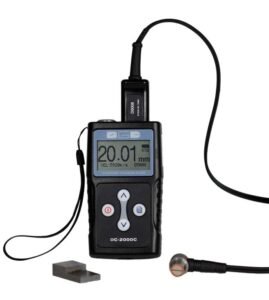

DC-2000C DIGITAL ULTRASONIC THICKNESS GAUGE

Description

DC-2000C DIGITAL ULTRASONIC THICKNESS GAUGE

Brief
The DC-2000C Ultrasonic Thickness Gauge is our new and improved basic readout unit with automatic probe recognition, automatic zeroing and a larger, more easily read LCD. This instrument can measure with very high resolution (0.01 mm or 0.001 inches) the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor. The DC-2000C accurately displays readings in either inches or millimeters.
Technical Data:
 Display type: 4-digit LCD
 Display resolution: 0.001 inches or 0.01mm
 Measuring range: 0.040 to 15.75 inches (1 to 400mm) in steel
 Automatic recognition of probes with different frequencies
 Automatic zeroing of the unit
 Enlarged LCD (128 x 64 mm) with back light
 Sound velocity range: 3280-32800 ft/s (1000-9999 m/s)
 Operating temperature: 5°F to122°F (-15°C to 50°C)
 Power supply: two AAA batteries
 Battery life: approx. 250 hours with one battery set
 Dimensions: 4-5/8 x 2-3/8 x 1-1/8 inches
 Weight: 7.7 ounces with batteries
Standard Package
DC-2000C processor
Standard 5MHz probe D5008
Built-in calibration block
Two AAA batteries
Coupling agent
Operation manual and calibration certificate
Carrying case
Standard & Optional Probes Probe Part #
Frequency (MHz)
Measuring Range
Application
D5008 Standard
5 MHz
0.8 to 400 mm
Standard
D7006 Optional
7.5 MHz
0.65 to 50 mm
Thin materials
D2012 Optional
2 MHz
2.0 to 400 mm
Coarse-grained materials and rough surfaces
D5113 Optional
5 MHz
2.0 to 200 mm
High temperature environment
