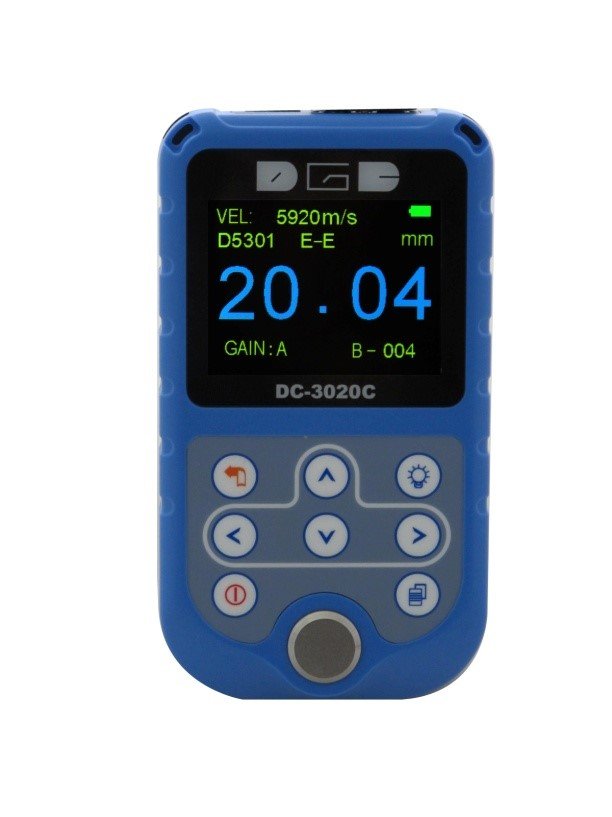

DC3020C Thru-Paint Ultrasonic thickness gauge

Description

  DC3020C Thru-Paint Ultrasonic thickness gauge







Features：

– The Through-Coating thickness measurement (E-E)
– Pocket Size, easy to operate.
– Automatic probe Zero calibration
– Automatic probe identification
– Measuring Range: E-E: 3-25mm
T-E 0.65 – 400 mm (Range depends on probe-material combination)
– Memory: 5000 readings with location number
– Data output: Software and USB cable to PC
– Three measurement modes: T-E, E-E, Scan
– 9 material velocities are stored for selection, or input the new velocity manual















Specification：

Specification			DC3020
Measurement mode	T-E	-Standard measurement: For Normal thickness measurement. -Minimum measurement: For curved surface -Differential measurement: Displays the difference from the actual thickness measurement or from a user entered reference value -Average measurement : 2-9 point selectable -Limit measurement: Min. Max setting and alarm	√
	E-E	The metal wall thickness is accurately and quickly measured in spite of surface coating	√
	Scan	thickness value at 10 measurements per second while also display actual thickness (Ideal for high temp. thickness readings)	√
Probe identify	Auto		√
Probe zero	Auto at power up and continuously during the measurement		√
Gain adjust	Auto gain adjustment Manual gain adjustment: low, standard and high		√
Memory	5000 groups		√
Output	USB to PC		√
Measuring Range	E-E : 3-25mm T-E: 0.65-400mm(range depends on probe-material combination)		√
Resolution	0.01mm (0.001 inch) for thickness up to 99.99mm 0.1mm ( 0.01 inch) for thickness above99.99mm		√
Information Display	Measurement reading, Probe type, Velocity, measurement mode, measurement Symbol, Battery		√
Velocity range	9 material velocities are stored for selection, or entre the new velocity manually (1000m/s-9999m/s)		√
Vel. measurement	Simply calibrate when a material’s velocity is unknown		√
Display	128 x 64 graphics LCD monochrome		√
Battery Type	2 AAA Alkaline		√
Battery life	Up to 50 Hours (without Backlight)		√
Shut off	Auto, 2Min., 5Min., or never shut off delectable		√
Work. Temperature	-20℃-50℃		√
Unit	mm/inch		√
Dimensions	115mm x 64mm x 27mm		√
Weight	220g		√















































































































Standard Delivery：

– Main Unit – Standard 5MHZ transducer D5301 – Built-in calibration Block 4mm – Couplant 4 oz – Software + Cable – Two AAA Batteries – Calibration Certificate – Operation Manual – Carrying Case

Optional accessories：



Probe Part #	Frequency (MHz)	Measuring Range	Application
D5301 Standard	5 MHz	1.20 to 400 mm (T-E) 3 to 25 mm (E-E)	Standard
D7006 (Optional)	7.5 MHz	0.65 to 50 mm (T-E)	Thin materials
D7004 (Optional)	10MHz	0.65 to 20 mm (T-E)	Thin materials
D2012 (Optional)	2 MHz	2.0 to 400 mm (T-E)	Coarse-grained materials and rough surfaces
D5113 (Optional)	5 MHz	2.0 to 200 mm (T-E)	High temperature: 350 deg C max.
