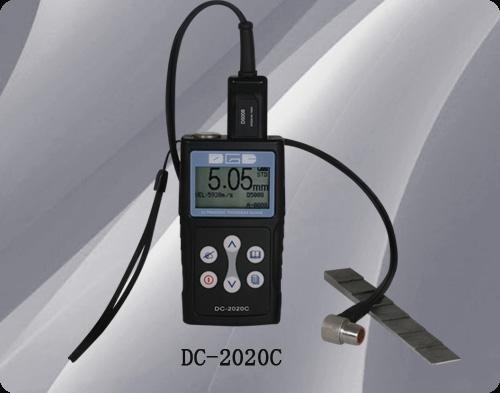

DC-2020C Ultrasonic Thickness Gauge

Description

DC-2020C Digital Ultrasonic Thickness Gauge

Brief
The DC-2020C Ultrasonic Thickness Gauge is our new state-of-the-art menu-driven instrument with extended memory (5000 readings storage) and USB output capability. Automatic probe recognition, automatic zeroing and a larger, more easily read LCD are other major features. This instrument can measure with very high resolution (0.01 mm or 0.001 inches) the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductors. The DC-2020C is a quite versatile unit which can be easily equipped with any of the low & high frequency probes as well as a high temperature probe.
Features
 Accurately displays readings in either inches or millimeters
 Simple calibration to either a known thickness or a sound velocity
 Memory – 5000 readings with location identity
 Hi-low limit settings with either audible or visual indication
 Standard or scanning mode
Technical Specifications
 Display type: 4-digit LCD
 Display resolution: 0.001 inches or 0.01mm
 Measuring range: 0.040 to 15.75 inches (1 to 400mm) in steel
 with standard probe
 Automatic recognition of probes with different frequencies
 Automatic zeroing of the unit
 Large LCD (128 x 64 mm) with back light
 Sound velocity range: 3280-32800 ft/s (1000-9999 m/s)
 Operating temperature: 32 deg F to122 deg F (0 deg C to 50 deg C)
 Power supply: two AAA batteries
 Battery life: approx. 250 hours with one battery set
 Dimensions: 4-5/8 x 2-3/8 x 1-1/8 inches
 Weight: 7.7 ounces with batteries
Standard Package
 DC-2020C processor,
 Standard 5MHz probe D5008
 Built-in calibration block
 Two AAA batteries
 Software
 USB Cable
 Coupling agent
 Operation manual and calibration certificate
 Carrying case
Standard & Optional Probes Probe Part # Frequency (MHz) Measuring Range Application
D5008 Standard
5 MHz
0.8 to 400 mm
Standard
D7006 Optional
7.5 MHz
0.65 to 50 mm
Thin materials
D2012 Optional
2 MHz
2.0 to 400 mm
Coarse-grained materials and rough surfaces
D5113 Optional
5 MHz
2.0 to 200 mm
High temperature environment: 350? C max.
