DC-4000 Ultrasonic Thickness Gauge With A-Scan & B-Scan

Description

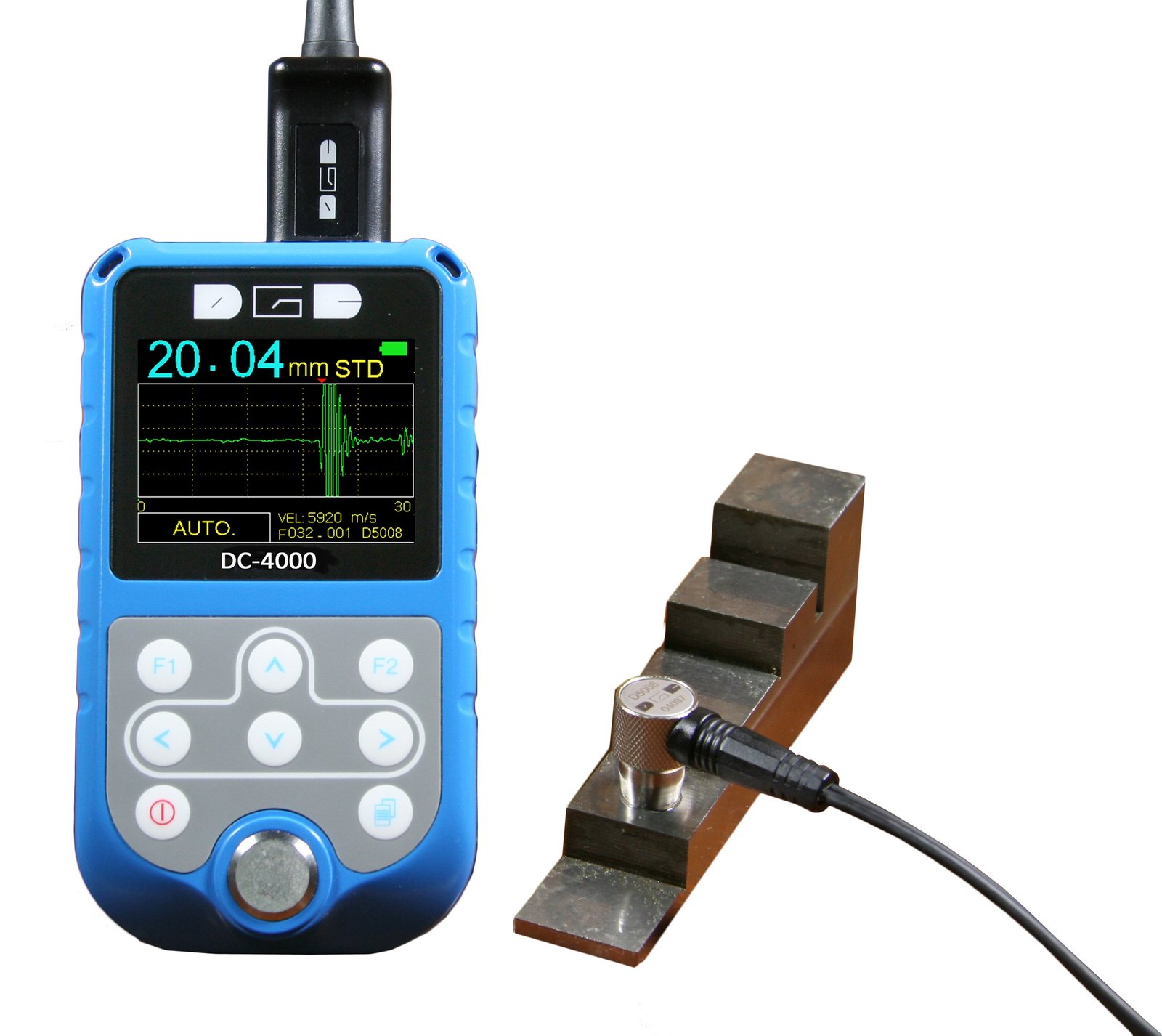

DC-4000 Ultrasonic Thickness Gauge

With A-Scan & B-Scan

l  320×240 TFT color screen l  Measure mode: (P-E) pulse-echo and (E-E) thru-paint l  A scan and B scan l  Auto probe zero calibration l  Auto probe indentify l  Measuring range:  T-E 0.65-400.0mm  E-E 3.00-25.0mm l  Option in Gain, Gate and Blank setting l  Standard 5.0MHz transducer included, optional transducers l  Display resolution 0.01mm/ 0.001in l  Memory of 10000 readings in 100 files l  USB output, easily works with A any Windows operating system both 64 and 32 bits.  l  Multiple languages support l  2 year warranty



Physical

Operating Temperature:

-10℃ to 50℃ (-14℉to 662℉)

Keyboard:

Membrane switch with 8 tactile keys

Case: ABS plastic

Data Output:

USB port; Data output directly without any driver

Display: 320×240 TFT color display

Weight: 260g

Size:133L×75W×29H mm

(5.2L×3.0W×1.1H inch)

Ultrasonic Specifications

Measurement Modes:

Transmit-Echo

Echo-Echo (Thru-paint)

Receiver:

Manual or Auto gain control with 50dB range, depending on mode selected.

Display

Display Views:

Large Digits: Standard thickness view

B-Scan:

Scan Bar: Thickness 10 readings per second; Viewable in B-Scan and large Digit Views.

Power Source

Two 1.5V AA alkaline. Typically operates for 24 hours.

Measuring

Transmit-Echo Mode:

Measures from 0.65 to 400.0mm (0.025 to 15.748 inches)

Echo-Echo Mode: (Thru Paint & Coatings)

Measures from 3.00-25.0mm (0.118 to 1.000 inch). Range will vary +/- depending on the thickness of coating.

Resolution: +/-0.01mm (0.001 inches)

Velocity Range:

1000 to 9999 meters/sec

.492 to .3936 inches/ms

Units: Metric & English

Transducer

Transducer Types:

Dual Element (2 to 10 MHz) with cable length 1.25m.

Custom transducers and cable lengths are available for special applications.

Memory

Data Structure:

English letter +Alpha numeric

Cell Contents:

10,000 readings,

Memory: build-in TIF card

Features

Gain, Gate and Blank:

Adjustable

Standard Mode: For general purpose.

Minimum Mode: Only the minimum value is shown during testing.

Difference Mode: The accurate differential value between measured value and reference value is shown.

Average Mode: The average value of 2-9 testing points is displayed.

Limit Mode:

Set Hi and Lo tolerances with audible beeper and visual LEDs.





Warranty

2 years



Big Digit View

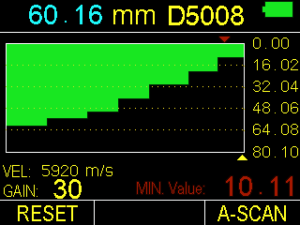

B-Scan View

Standard delivery:

DC-4000 main unit

D5301 transducer with cable

Calibration certificate

Software and USB cable

Coupling gel

2 AA batteries

Instruction manual

Carrying case
